Description

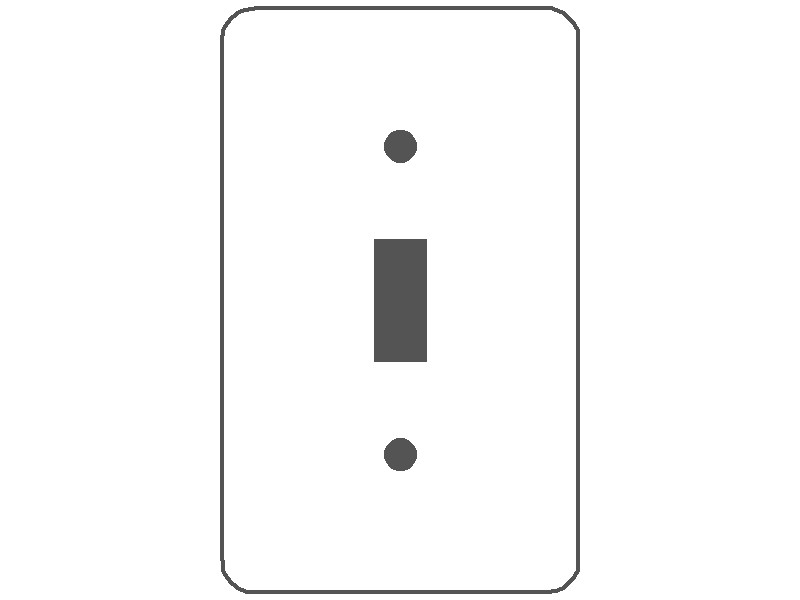

Designed for electrical boxes that protrude from the wall surface, this 1-gang extra-deep painted metal wall plate provides additional depth to help reduce unsightly gaps around the installation. The plate measures 4.5 in. high x 2.75 in. wide x 9/16 in. deep and features one toggle switch opening with device mounting and 2.375 in. between mounting holes. Constructed from 0.030-inch-thick cold-rolled steel, it provides a durable solution for electrical installations requiring additional wall plate depth. The White Semi-Gloss powder coat finish provides a clean appearance and helps resist chipping and scratching. This extra-deep design features no beveled edges and a 90-degree return. The plate is UL Listed to UL 514D and includes matching 1/2-inch standard slotted 6-32 oval-head screws. Suitable for residential, commercial, industrial, and institutional applications where applicable, this wall plate is Made in USA.
Product Specifications
- Gang: 1

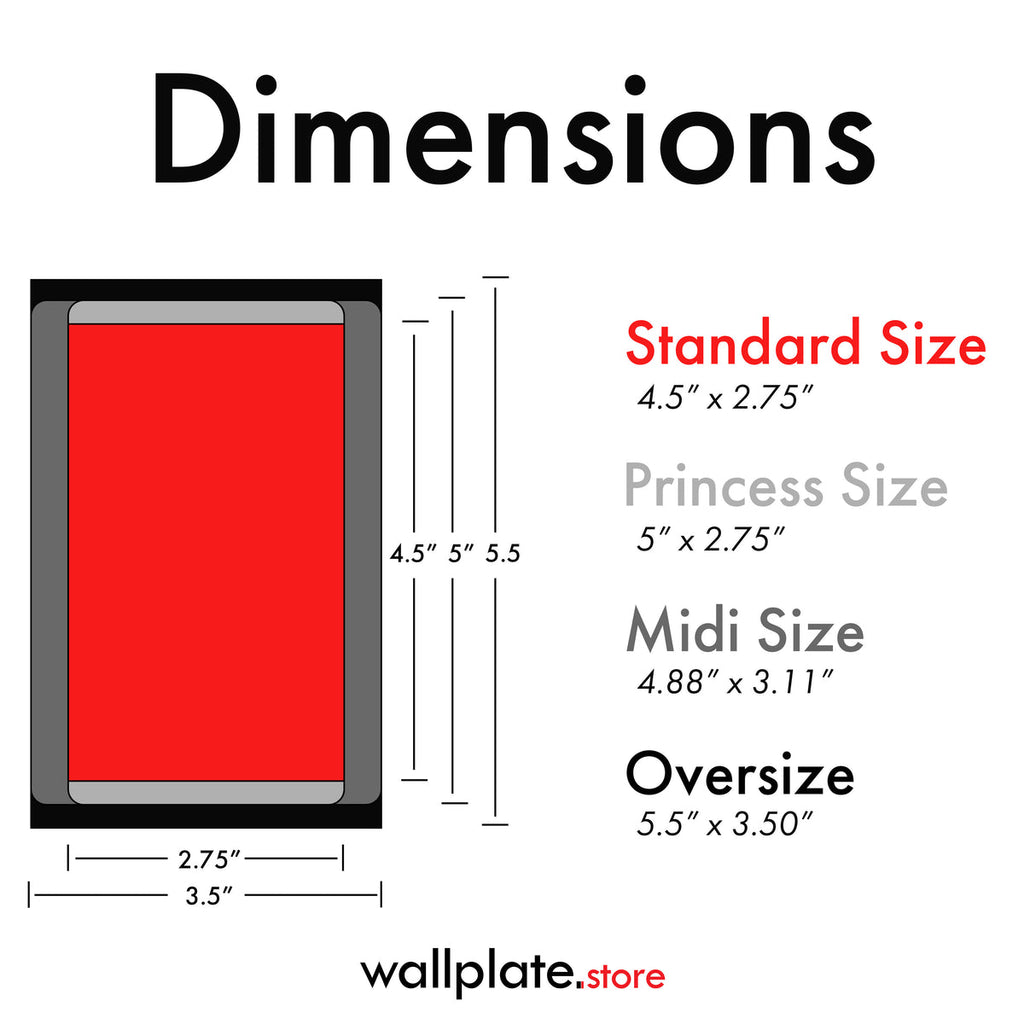

- Size: Extra Deep (4.5 in. high x 2.75 in. wide x 9/16 in. deep)
- Opening: 1 Toggle Switch
- Material: Painted Metal - Cold-Rolled Steel
- Finish: White Semi-Gloss
- CAT. NO.: 86752
- Thickness: 0.030 inches
- Depth: 9/16 in. (0.5625 in.)
- Mounting: Device Mounting
- Mounting Hole Spacing: 2.375 in.
- Edge Profile: No beveled edges; 90-degree return
- UL Listed: Yes
- Standard: UL 514D
- Made in USA: Yes
- Applications: Residential, Commercial, Industrial, Institutional
- Included Hardware: Matching 1/2-inch slotted 6-32 oval-head screws
Product Features
- Extra-deep 9/16-inch design helps accommodate electrical boxes that protrude from the wall
- Durable cold-rolled steel construction
- 0.030-inch steel thickness
- White Semi-Gloss powder coat finish
- Finish helps resist chipping and scratching
- No beveled edges with a 90-degree return
- 1-gang design with toggle switch opening
- Device mounting with 2.375-inch mounting-hole spacing
- Includes matching screws
- UL Listed to UL 514D
- Suitable for residential, commercial, industrial, and institutional applications
