Description

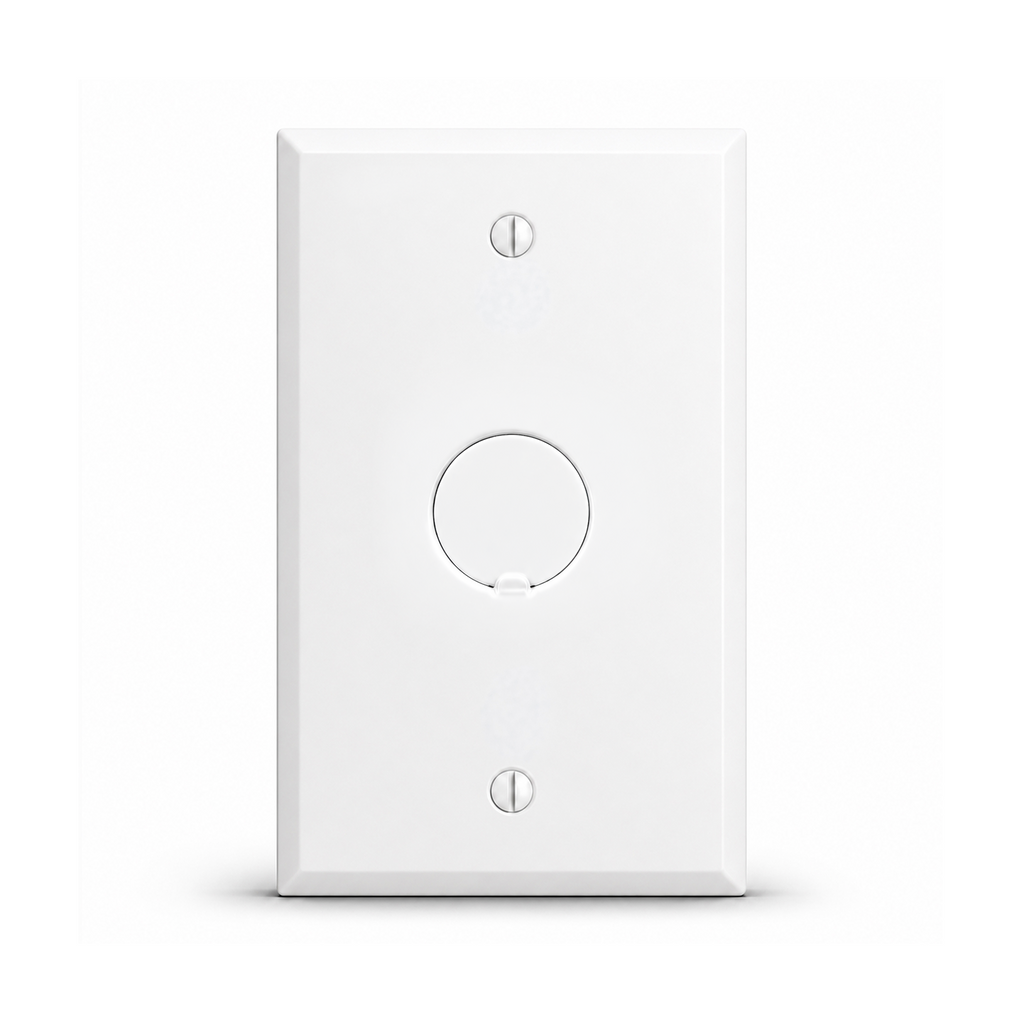

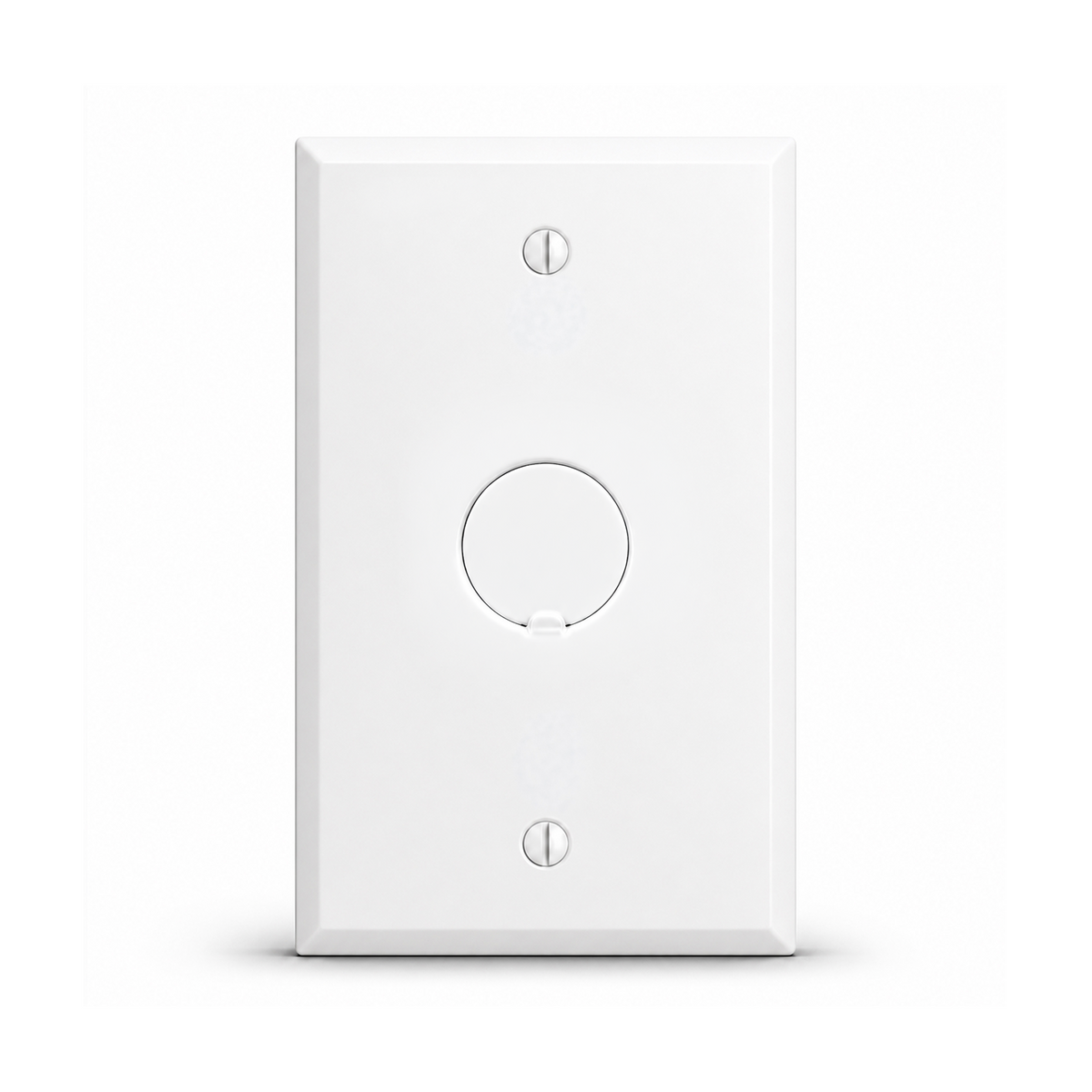

This 1-gang metal wall plate features a 1/2-inch knockout opening designed for voice, data, and compatible datacom applications. Constructed from 0.030-inch-thick cold-rolled steel, it provides a sturdy metal cover for standard electrical wall boxes. The White Semi-Gloss powder-coated finish offers a clean, professional appearance suitable for residential, commercial, and institutional interiors.
Measuring 4.5 inches high x 2.75 inches wide, this standard-size wall plate is designed for box mounting, with 3.281 inches between mounting holes. The knockout has an actual inside diameter of 0.875 inches, accommodating compatible data and communication installations.
The powder-coated finish helps inhibit oxidation and helps prevent chipping and scratching. If needed, the surface can be painted in the field to coordinate with updated interior décor. Matching 1/2-inch slotted 6-32 oval-head mounting screws are included for installation. This UL Listed wall plate conforms to UL 514D and is Made in USA, making it a practical choice for organized voice and data wiring installations.
Product Specifications
- Gang: 1
- Size: Standard (4.5 in. high x 2.75 in. wide)
- Dimensions: 4.5 in. high x 2.75 in. wide
- Opening: 1/2-inch knockout (0.875 in. actual inside diameter)
- Material: Cold-rolled steel, painted metal
- Finish: White Semi-Gloss
- Mounting: Box mounting (3.281 in. between mounting holes)
- Thickness: 0.030 in.
- UL Listed: Yes
- Standard: UL 514D
- Made in USA: Yes
- Applications: Voice, data, residential, commercial, and institutional installations
Product Features
- Cold-rolled steel construction: 0.030-inch-thick painted metal.
- White Semi-Gloss finish: Powder-coated surface for a clean, professional appearance.
- Datacom opening: Single 1/2-inch knockout with a 0.875-inch actual inside diameter.
- Standard-size design: Measures 4.5 inches high x 2.75 inches wide.
- Protective finish: Helps inhibit oxidation and prevent chipping and scratching.
- Paintable surface: Can be painted in the field to coordinate with updated décor.
- Box mounting: 3.281-inch spacing between mounting holes.
- Matching hardware included: 1/2-inch slotted 6-32 oval-head mounting screws.
- Certified compliance: UL Listed to UL 514D.
