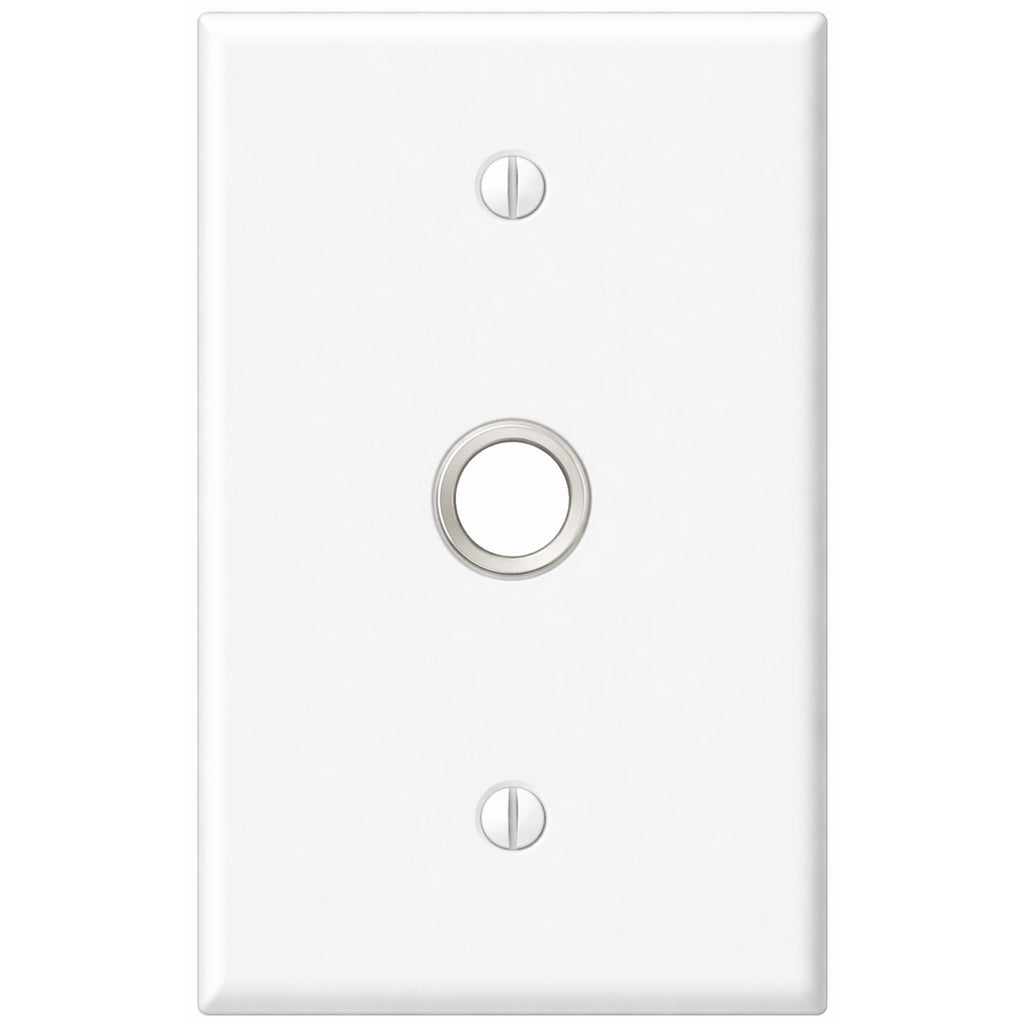

1-Gang, Standard Size Metal Wall Plate with 5/8 Inch Round Telephone Opening with Metal Grommet Bushing, White Semi-Gloss Plate Cover - Made in USA

This 1-gang standard-size metal wall plate features a 5/8 in. ID round telephone opening with a metal bushing. It is designed as a clean, finished cable pass-through wall plate, traditionally used for telephone wiring but also suitable for a variety of low-voltage cable applications.

The 5/8-inch round center opening allows telephone or other compatible low-voltage cable to pass directly through the wall plate. The metal bushing provides a smooth, finished edge around the opening and helps protect the cable from rubbing against the cut edge of the steel plate.

Ideal applications include hard-wired telephone installations, telephone systems in offices and commercial buildings, and low-voltage wiring for intercoms, alarms, door-entry systems, speakers, controls, and similar equipment, provided the cable fits through the 5/8-inch opening.

It is also an excellent choice for replacement and renovation projects where an existing telephone or low-voltage wire exits through a standard single-gang box and a neat, professional-looking finished cover is needed.

Please note: This wall plate is a cable pass-through cover and does not contain a telephone jack or connector.

Material

Construction: Painted metal; cold-rolled steel, 0.030 inches thick

Mechanical

Gang: 1

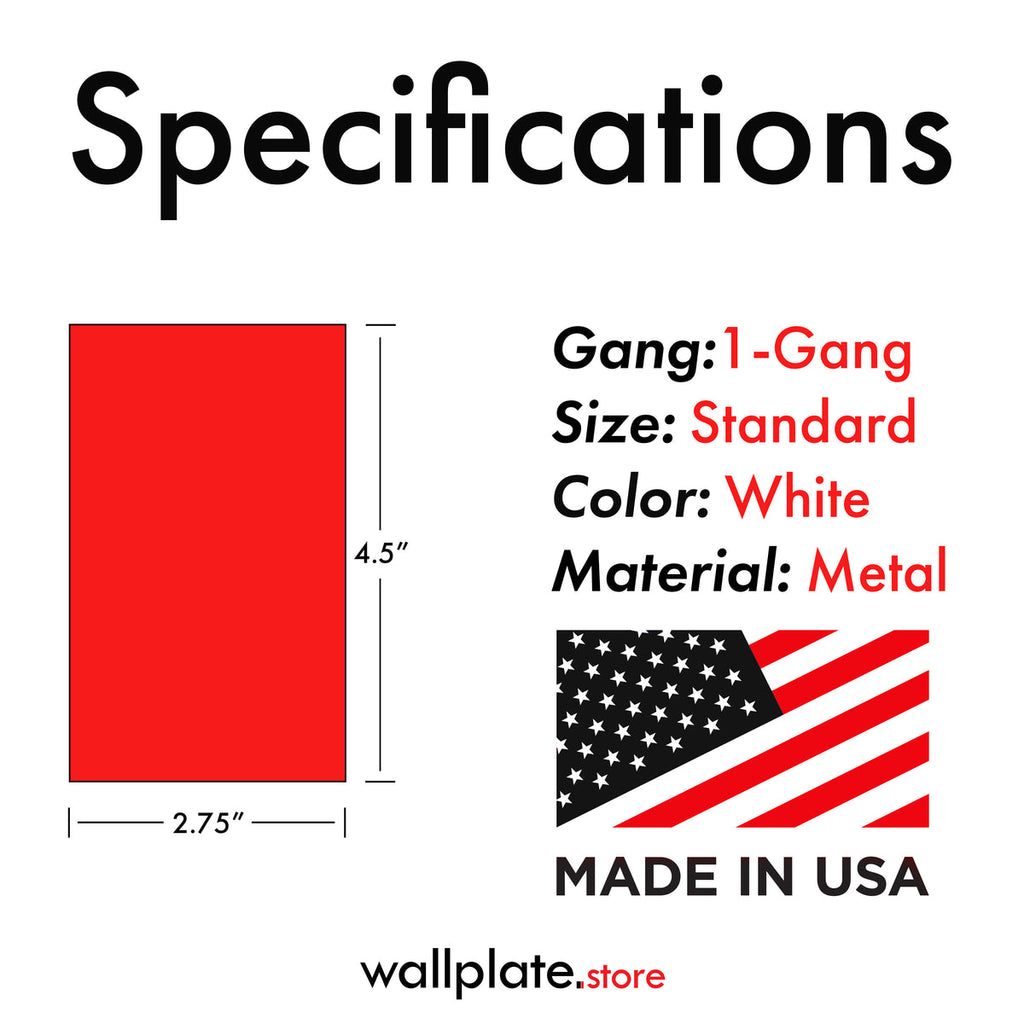

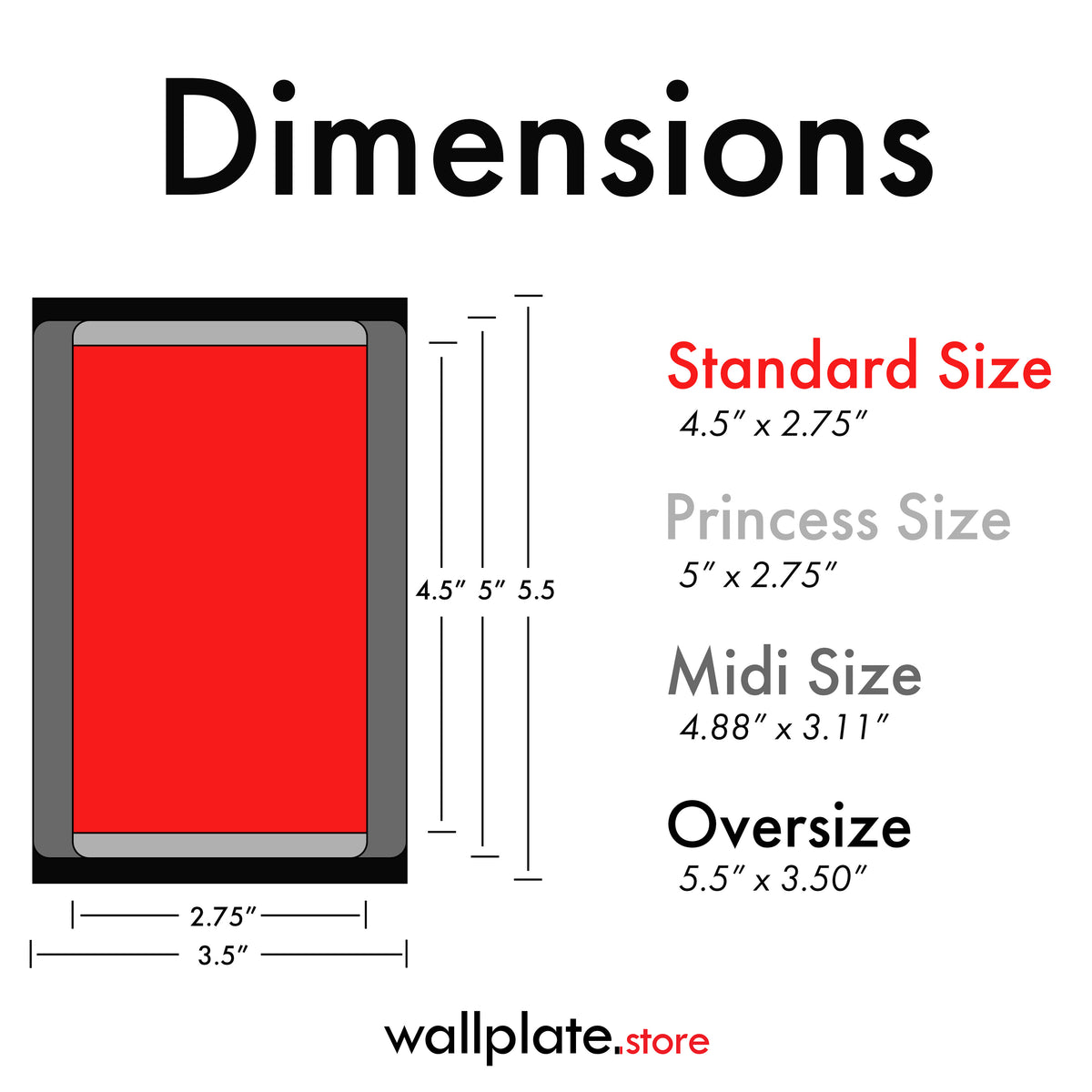

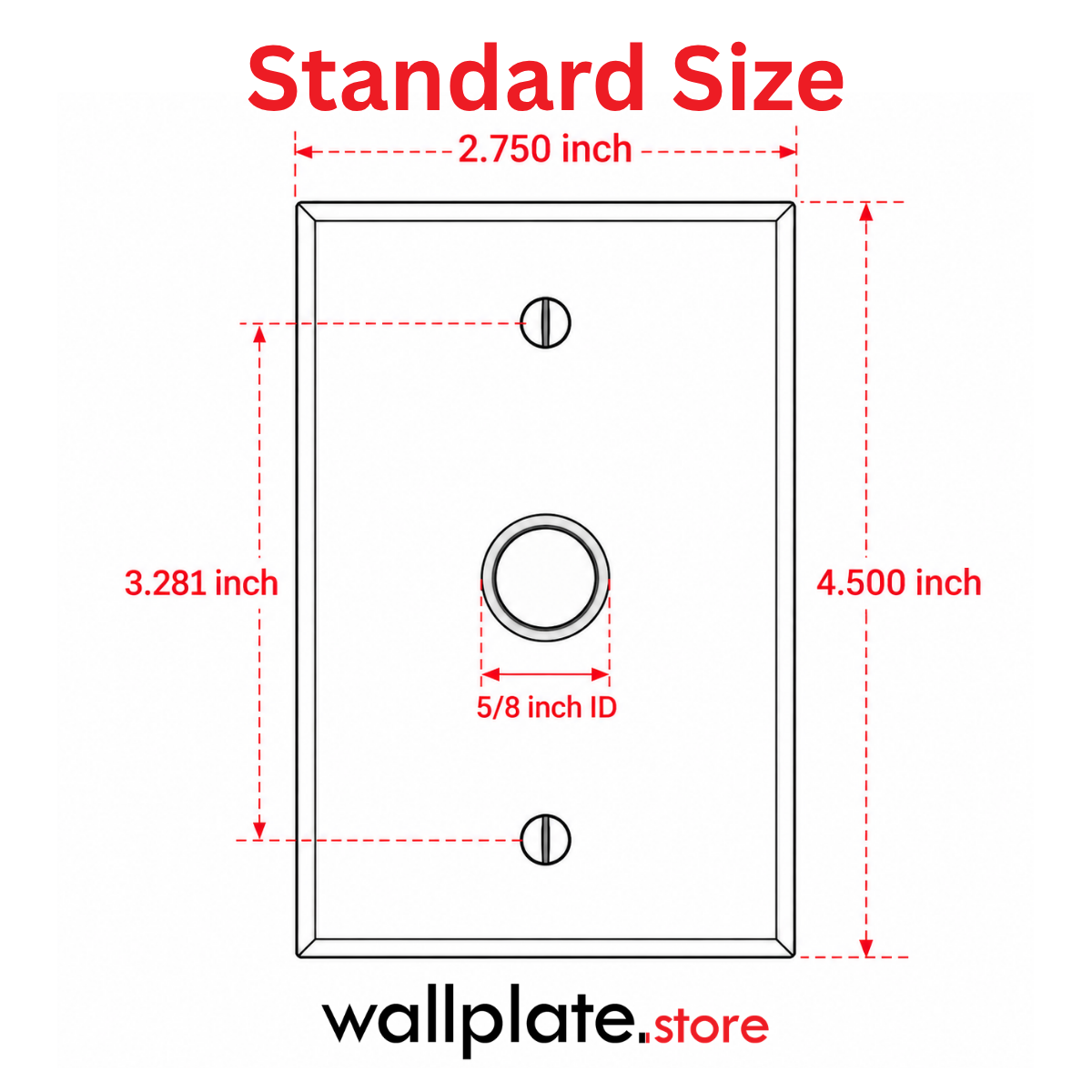

Size: Standard – 4.5 in. high x 2.75 in. wide
Size / Shape: Standard
Opening: 5/8 in. ID round telephone opening with metal bushing
Mounting: Box – 3.281 in. between mounting holes

Installation

Mounts to a standard 1-gang box using the two mounting screws spaced 3.281 inches apart. The telephone or low-voltage cable is brought through the box and fed through the 5/8 in. ID metal-bushed opening before the wall plate is secured to the box.

Typical Uses

• Hard-wired telephone cable pass-throughs
• Residential telephone installations
• Office and commercial telephone systems
• Apartment buildings, schools, hospitals, and institutional facilities
• Intercom and door-entry wiring
• Alarm and security-system wiring
• Speaker and other compatible low-voltage cables
• Control wiring
• Renovation and replacement of older telephone wall plates

Standards

Applicable Standards: UL 514D
Certification: UL Listed

Product Features

• Ideal for residential and commercial applications
• 5/8 in. round opening with protective metal bushing
• Provides a clean, professional finish for exposed telephone and low-voltage wiring
• Made from high-quality steel alloy
• Durable powder-coat finish helps resist oxidation, chipping, and scratching
• Can be field-painted if needed to match new room décor
• Comes with matching mounting screws
• Made in the U.S.A.
