Gang: 1

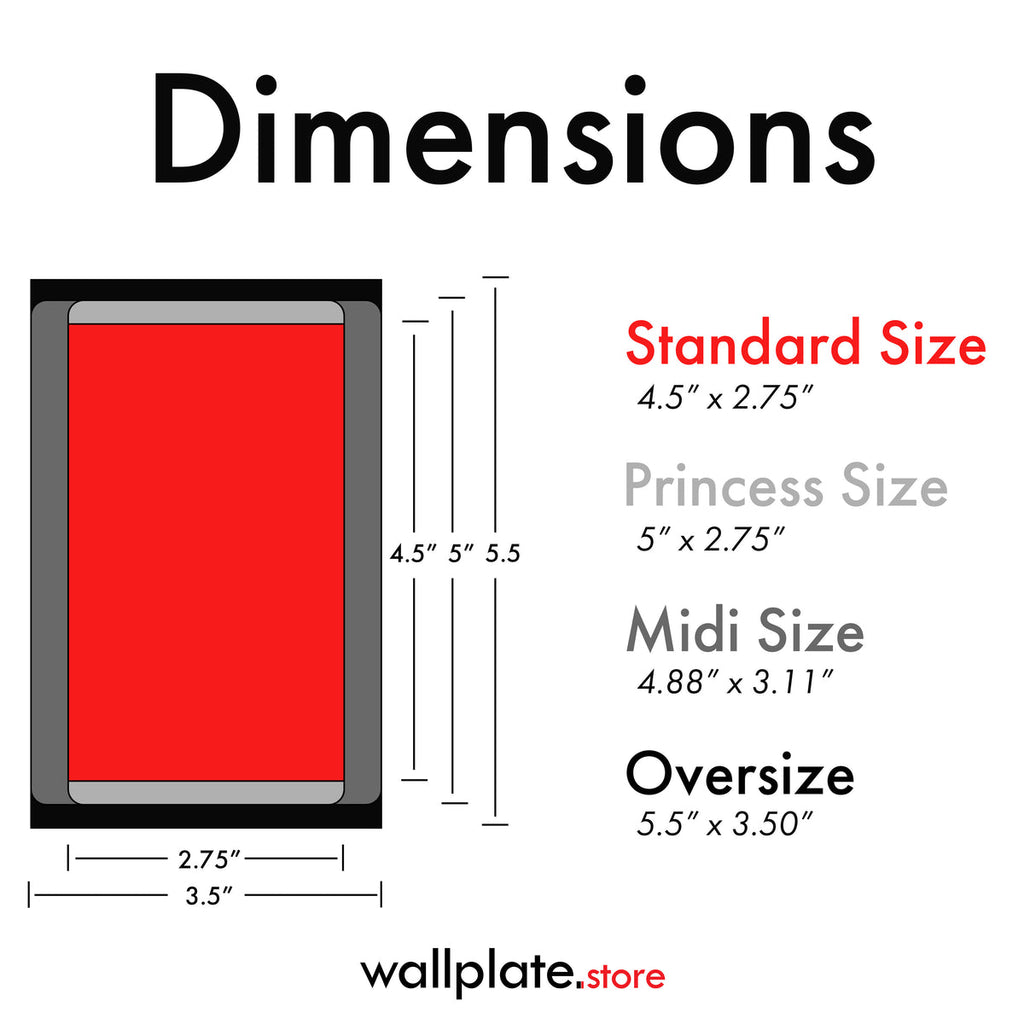

Size: Standard (4.5 in. high x 2.75 in. wide)
Opening: Single Receptacle (1.405 in.)
Mounting: Device (2.375 in. between mounting holes)

Type 304 Stainless Steel: Satin or Mirror finish, non-magnetic, .030 inches thick (except 70000 Series which measures .060 inches in thickness). This alloy contains 18% chromium and 8% nickel and offers superior resistance to corrosion. Ideal for hospitals, schools and other public institutions, as well as computer rooms.
Type 430 Stainless Steel: Satin finish, .030 inches thick. Good corrosion resistance, but, not as resistant as Type 304 nor does it have the same non-magnetic properties. Ideal for industrial and commercial applications in a less corrosive atmosphere.
Solid Brass: This distinctive copper / zinc alloy is available in Polished Brass, .040 inches thick, and, two grades of Satin Brass–one measuring .040 inches and the other, .060 inches in thickness. Polished Brass wallplates are packaged with protective film to inhibit oxidation. These superior brass wallplates will add a touch of warmth and elegance to any room.
Bronze: Available in Statuary Bronze, Bank Bronze and Satin Bronze, each .040 inches thick–providing a rich, decorative look.
Aluminum: Made of anodized aluminum, .040 inches thick, with a smooth finish. Appropriate for most commercial and industrial applications.
Chrome: Plated chrome with a mirror finish, .030 inches thick.

Mechanical:

Gang: 1
Size: Standard (4.5 in. high x 2.75 in. wide)
Size / Shape: Standard
Opening: Single Receptacle (1.405 in.)
Mounting: Device (2.375 in. between mounting holes)

Standards:

Applicable Standards: UL 514D
Certification: UL Listed

Finishes: Available in a choice of (12) twelve finishes in stainless steel, brass, bronze, chrome and aluminum. Comes with 1/2 inch standard slotted 6-32 oval head screws in matching finishes.

Product Features:

• Ideal for residential, commercial and institutional applications.
• Smooth, rounded edges prevent wall damage.
• Add elegance to any room in your home or office.
• Can be silk-screened or engraved.
• Made in the U.S.A.

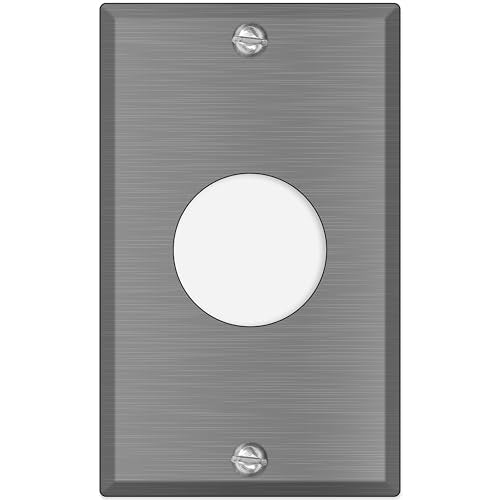

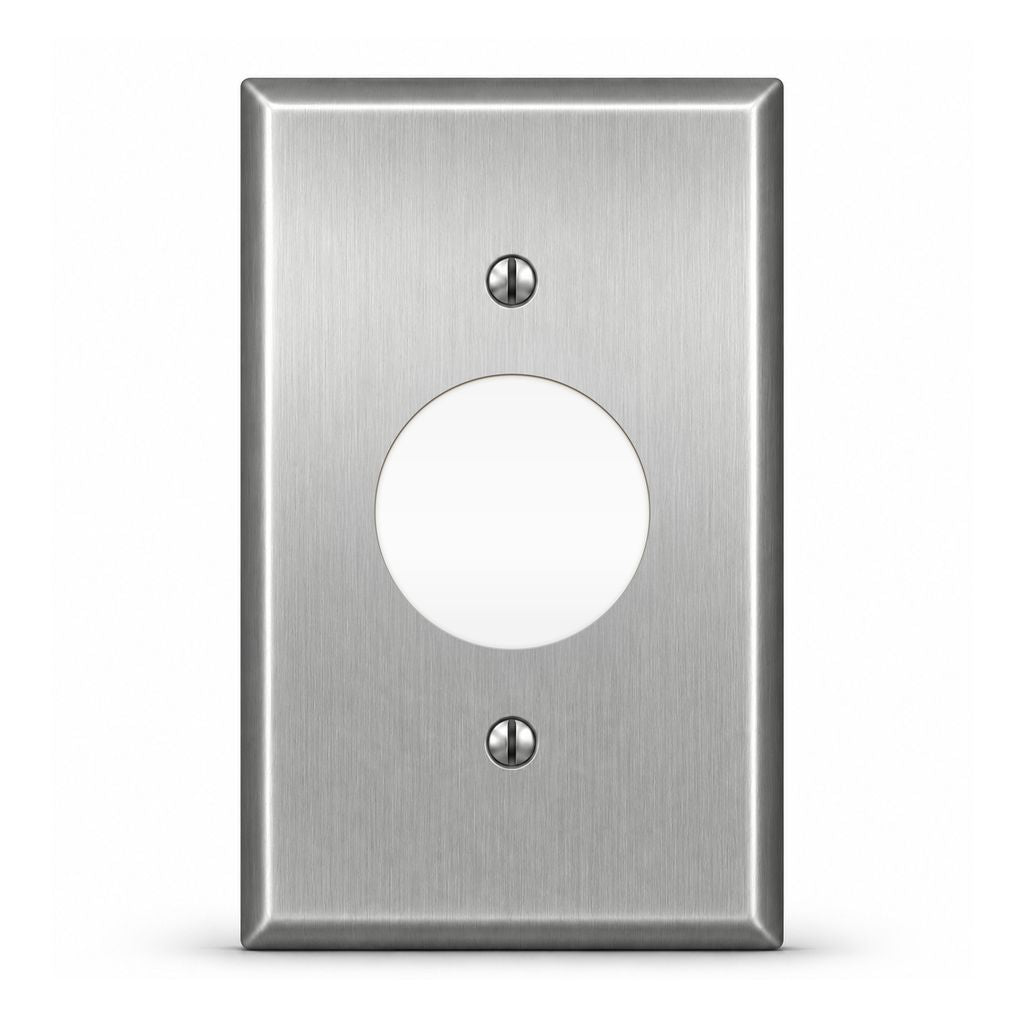

This 1-Gang Standard Size Wallplate with a single receptacle opening (1.405 in.) is designed for clean, professional electrical installations in residential, commercial, and institutional environments. Built to UL 514D standards and UL Listed for safety, it features a durable metallic finish and is available in premium materials including Type 304 and 430 stainless steel, solid brass, bronze, aluminum, and chrome. With smooth rounded edges to protect walls and a precise 2.375-inch device mounting spacing, this USA-made wallplate delivers both durability and a refined architectural look while supporting easy installation and compatibility with standard receptacle devices.
