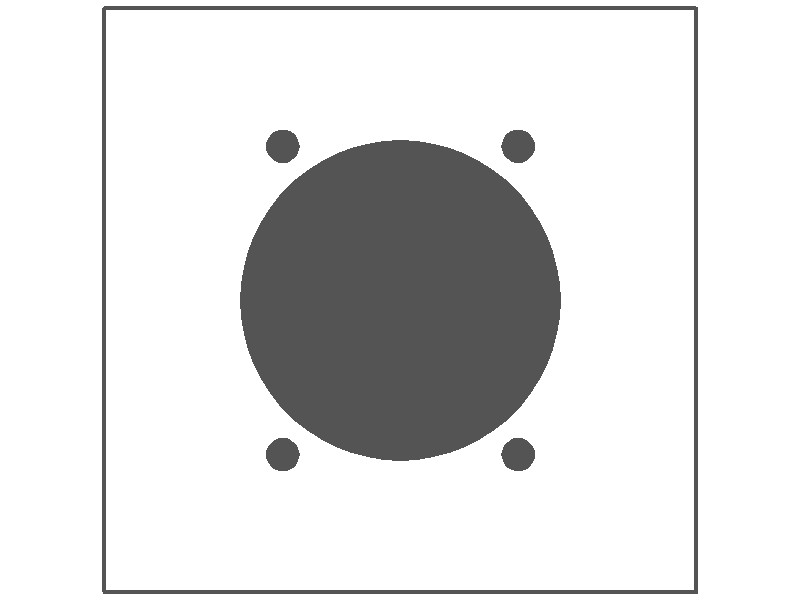

This 2-gang standard-size wall plate features a centered 30/50/60A 3 & 4 wire round receptacle opening with a 2.480 in. ID, providing a clean installation solution for compatible electrical applications. Constructed from 0.030-inch cold-rolled steel, the painted metal wall plate is designed for durable use in residential and commercial environments. The Red Semi-Gloss powder coat finish helps inhibit oxidation and helps prevent chipping and scratching while providing a clean finished appearance. The plate measures 4.5 in. high x 4.562 in. wide and uses a device mounting configuration. It is UL Listed to UL 514D for applicable installations. The wall plate includes 1/2-inch standard slotted 6-32 oval-head screws in a matching finish for mounting. Its standard 2-gang dimensions and centered receptacle opening make it suitable for compatible Range/Dryer and other specified high-amperage receptacle installations. Made in USA.

Product Specifications

• Gang: 2

• Size: Standard (4.5 in. high x 4.562 in. wide)

• Opening: 30/50/60A 3 & 4 wire round receptacle opening (2.480 in. ID), centered

• Material: Painted Metal - Cold-Rolled Steel

• Finish: Red Semi-Gloss

• Thickness: 0.030 inches

• Mounting: Device

• UL Listed: Yes

• Standard: UL 514D

• Made in USA: Yes

• Applications: Residential, Commercial

Product Features

• Durable 0.030-inch cold-rolled steel construction

• Red Semi-Gloss powder coat finish

• Finish helps inhibit oxidation and resist chipping and scratching

• Standard-size 2-gang design

• Centered 2.480 in. ID round receptacle opening

• 30/50/60A 3 & 4 wire receptacle configuration

• Device mounting

• Includes matching 6-32 oval-head mounting screws

• Suitable for residential and commercial applications

• UL Listed
